January 2010

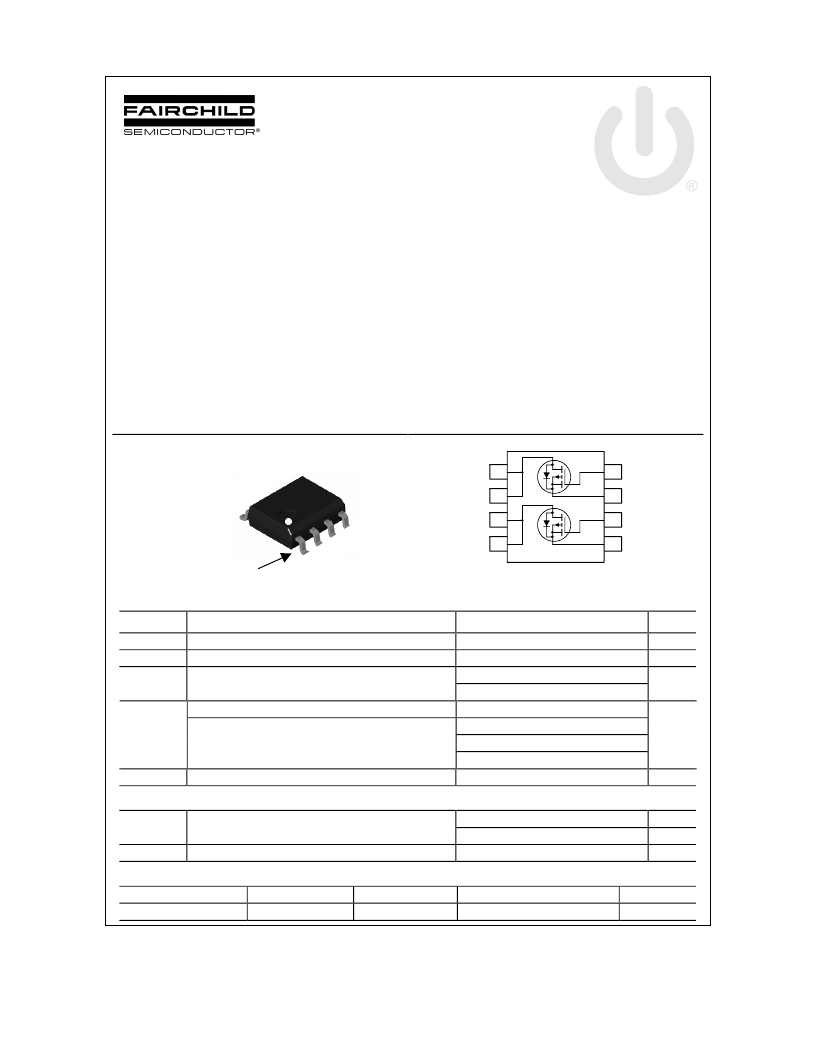

NDS9948
Dual 60V P-Channel PowerTrench ? MOSFET
General Description
Features
This P-Channel MOSFET is a rugged gate version of
Fairchild Semiconductor’s advanced PowerTrench
process. It has been optimized for power management
? –2.3 A, –60 V
R DS(ON) = 250 m ? @ V GS = –10 V
R DS(ON) = 500 m ? @ V GS = –4.5 V
applications requiring a wide range of gate drive voltage
ratings (4.5V – 20V).
Applications
? Low gate charge (9nC typical)
? Fast switching speed
?
?
?
Power management
Load switch
Battery protection
? High performance trench technology for extremely
low R DS(ON)
? High power and current handling capability
D D2
D D1
D D1
D D2
5
6
Q1
4
3
7
2
S2 S
S1 G
SO-8
Pin 1 SO-8
S
G2
S
G1
8
Q2
1
Absolute Maximum Ratings
T A =25 o C unless otherwise noted
Symbol
V DSS
V GSS
Parameter
Drain-Source Voltage
Gate-Source Voltage
Ratings
–60
± 20
Units
V
V
I D
Drain Current
– Continuous
(Note 1a)
–2.3
A
– Pulsed
–10
P D
Power Dissipation for Dual Operation
Power Dissipation for Single Operation
(Note 1a)
(Note 1b)
(Note 1c)
2
1.6
1.0
0.9
W
T J , T STG
Operating and Storage Junction Temperature Range
–55 to +175
° C
Thermal Characteristics
R θ JA
R θ JC
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case
(Note 1a)
(Note 1c)
(Note 1)
78
135
40
° C/W
° C/W
° C/W
Package Marking and Ordering Information
Device Marking
NDS9948
Device
NDS9948
Reel Size
13’’
Tape width
12mm
Quantity
2500 units
? 20 10 Fairchild Semiconductor Corporation
NDS9948 Rev B 1 (W)
